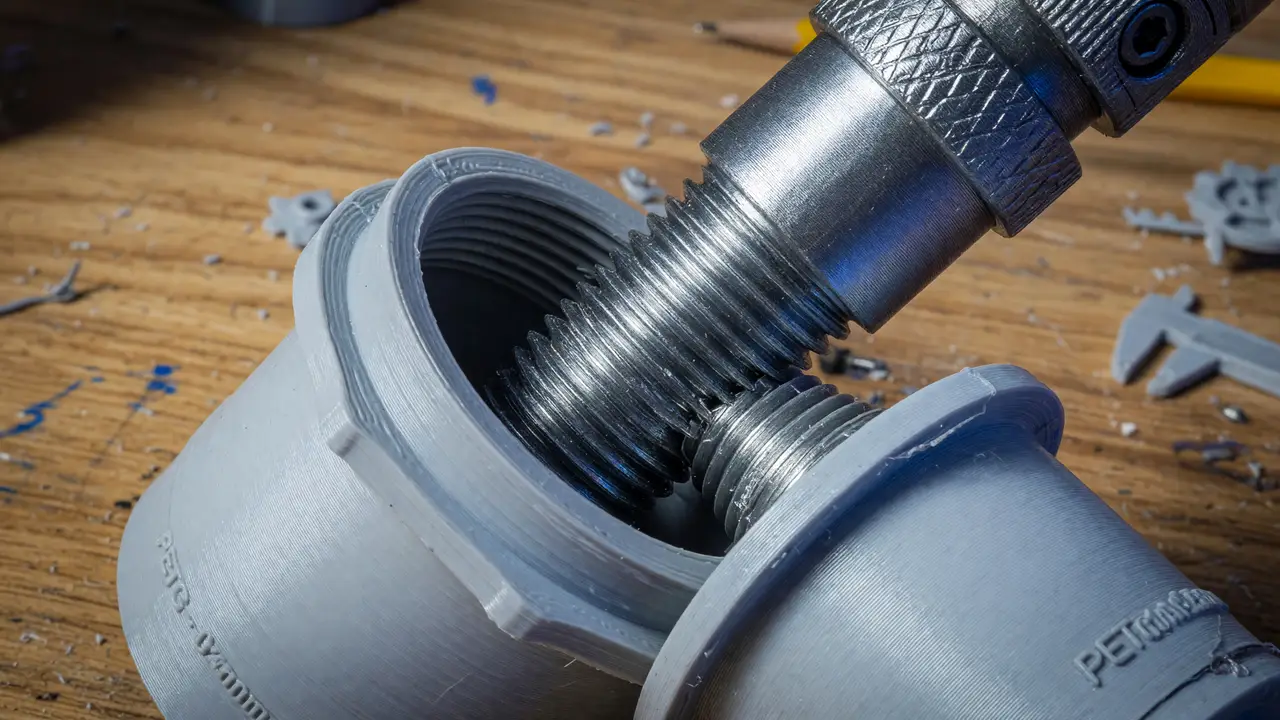

How to Design Threads and Mechanical Connections for 3D Printing

Threads are one of the quickest ways to ruin a functional 3D print. A tiny adjustment to clearance, layer height, or material can mean the difference between a part that screws together smoothly and one that seizes after two turns.

Choosing the Right CAD Platform

Two tools currently lead for parametric threads. Autodesk Fusion runs $85 a month or $680 a year on the commercial plan, though the free personal tier remains available. The March 2024 update added direct controls for pitch, profile angle, and tip radius—values that used to be locked. Designers can now match real fastener specs more closely and pull clean drawings for documentation.

SolidWorks costs more. Cloud subscriptions start at $2,820 per year for Standard and climb to $4,716 for Premium, which includes the fastener library. Perpetual licenses sit near $3,995 plus maintenance. The basic thread tool is solid, but the full hardware library needs the higher tiers.

For most people, Fusion’s updated controls and free tier still give the best mix of price and function.

Printer Capabilities That Affect Thread Quality

Nozzle size and minimum layer height set hard boundaries. Both the Prusa MK4 and Bambu Lab X1 Carbon ship with 0.4 mm nozzles. Functional threads usually need layers between 0.10 mm and 0.20 mm.

Many users find that 0.16 mm profiles on the X1 Carbon with the slicer tolerance set to “middle” give the cleanest internal thread overhangs. On the MK4, staying at or below 0.20 mm avoids the stair-stepping that makes threads bind.

Material Choices for Load-Bearing Threads

Price and performance move together. Standard PETG costs $36–52 per kg; carbon-fiber versions run $36–60. Nylon and Nylon-CF grades jump to $80–160 per kg but handle repeated assembly cycles far better.

For one-off prototypes, PETG-CF usually gives enough strength without the extra cost. When the part will be taken apart often, the higher price of Nylon-CF pays off in longer life.

Clearance and Tolerance Rules That Actually Work

A radial offset of 0.15–0.20 mm on M6 and larger threads works reliably on both printers. Smaller threads (M4 and below) often need 0.25 mm or hand finishing because the nozzle simply can’t resolve the detail.

Print the first few millimeters of engagement at 0.10–0.16 mm layers. Drop speed 20–30 % on overhangs and keep cooling strong. These tweaks beat trying to print threads at draft settings.

Free Add-ons and a Repeatable Workflow

Three community tools extend Fusion’s native thread features:

• ThreadKeeper keeps custom definitions from disappearing after updates.
• P_ThreadTune adds fine metric and imperial tweaks.
• The open-source Fusion 360 Threads Generator script creates fully parametric profiles.

A practical workflow goes like this:

1. Model the nominal thread with Fusion’s current controls.
2. Add 0.15–0.20 mm clearance.
3. Lock the definition with ThreadKeeper.
4. Export the STL and slice at 0.16 mm layers with 4+ perimeters.
5. Test-fit and adjust clearance in 0.05 mm steps.

flowchart TD
    A[Define thread in Fusion] --> B[Apply clearance offset]
    B --> C[Lock definition with ThreadKeeper]
    C --> D[Slice at 0.16 mm layers]
    D --> E[Test fit & adjust]
    E -->|Pass| F[Print final part]
    E -->|Fail| B

Conclusion

Good threaded connections come down to aligning CAD settings, printer capabilities, and material choice. Use Fusion’s 2024 thread tools, keep clearance between 0.15–0.20 mm, print at 0.10–0.16 mm layers, and pick PETG-CF or Nylon-CF based on how many times the joint will be used. Those decisions, backed by current pricing and printer data, turn threaded parts from frequent headaches into parts that actually work.
